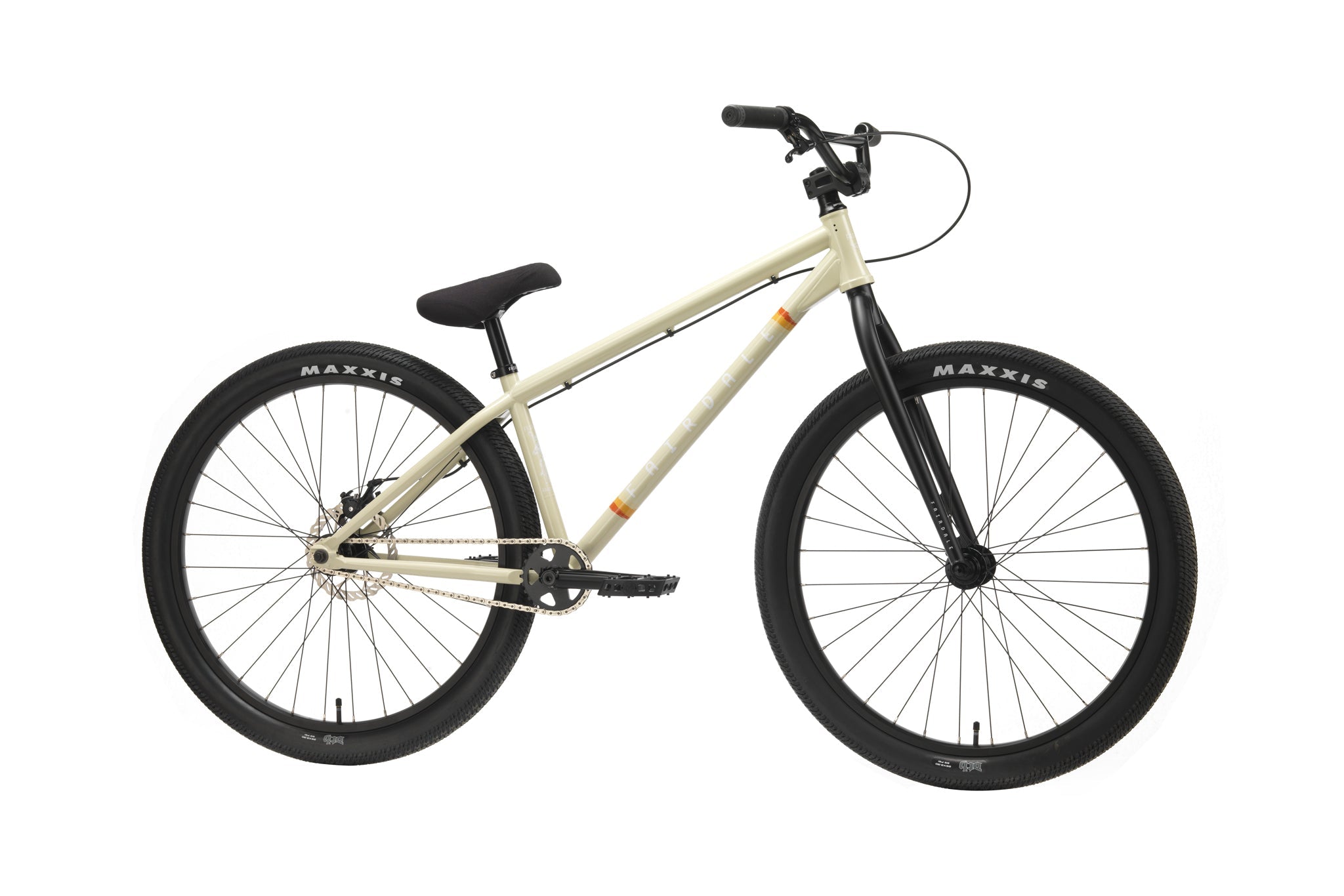

Fairdale Hareraiser 26"Classic White in S/M

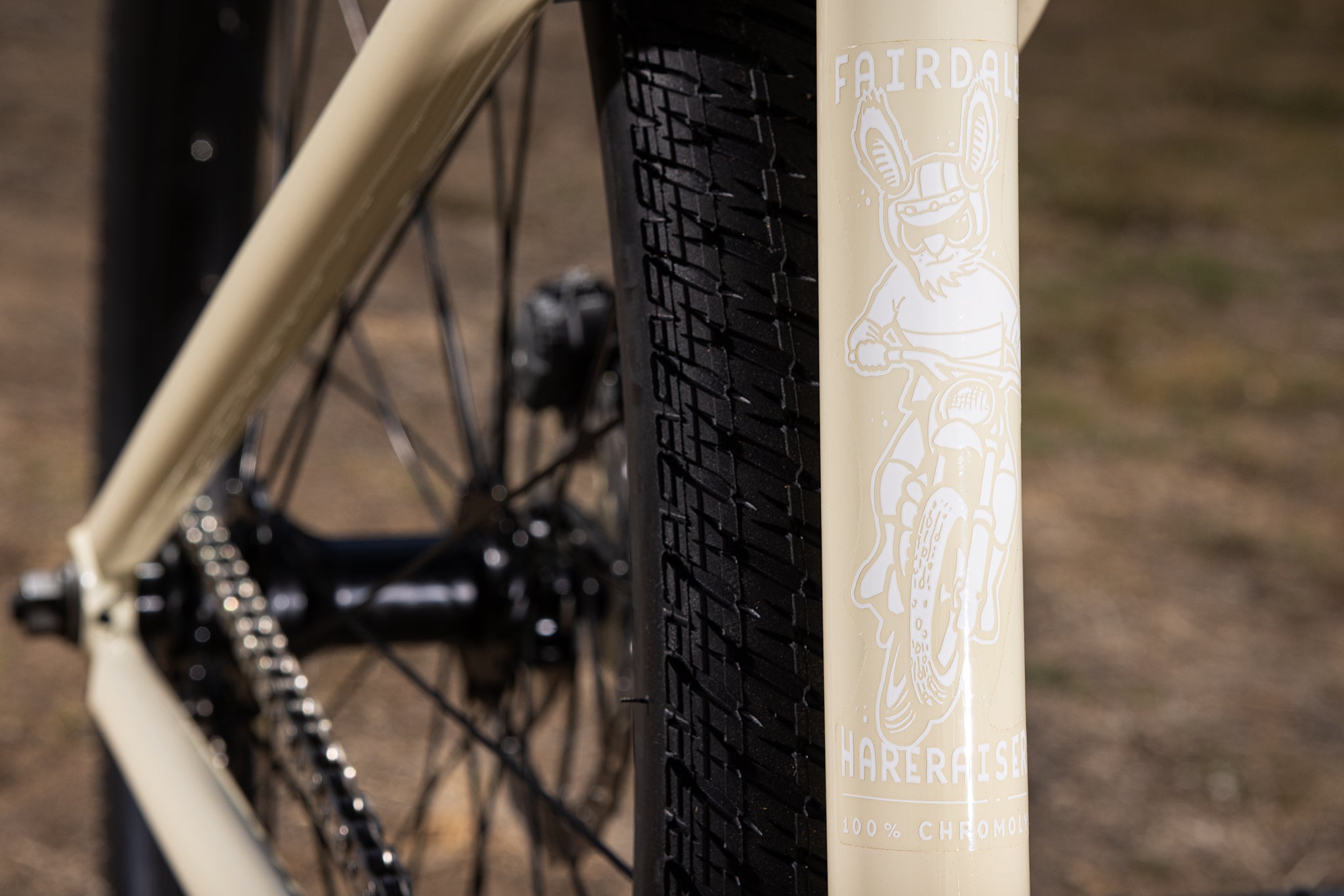

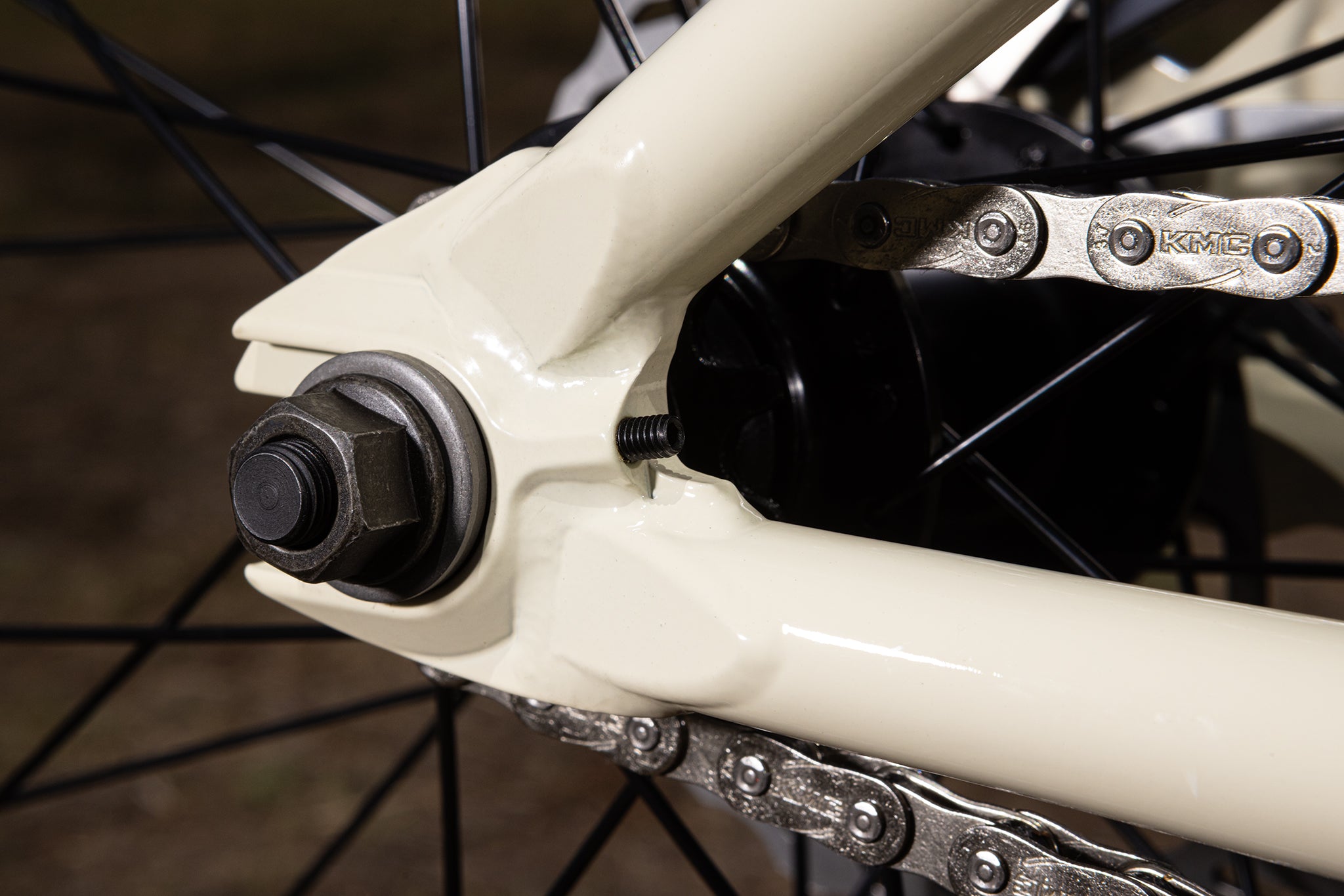

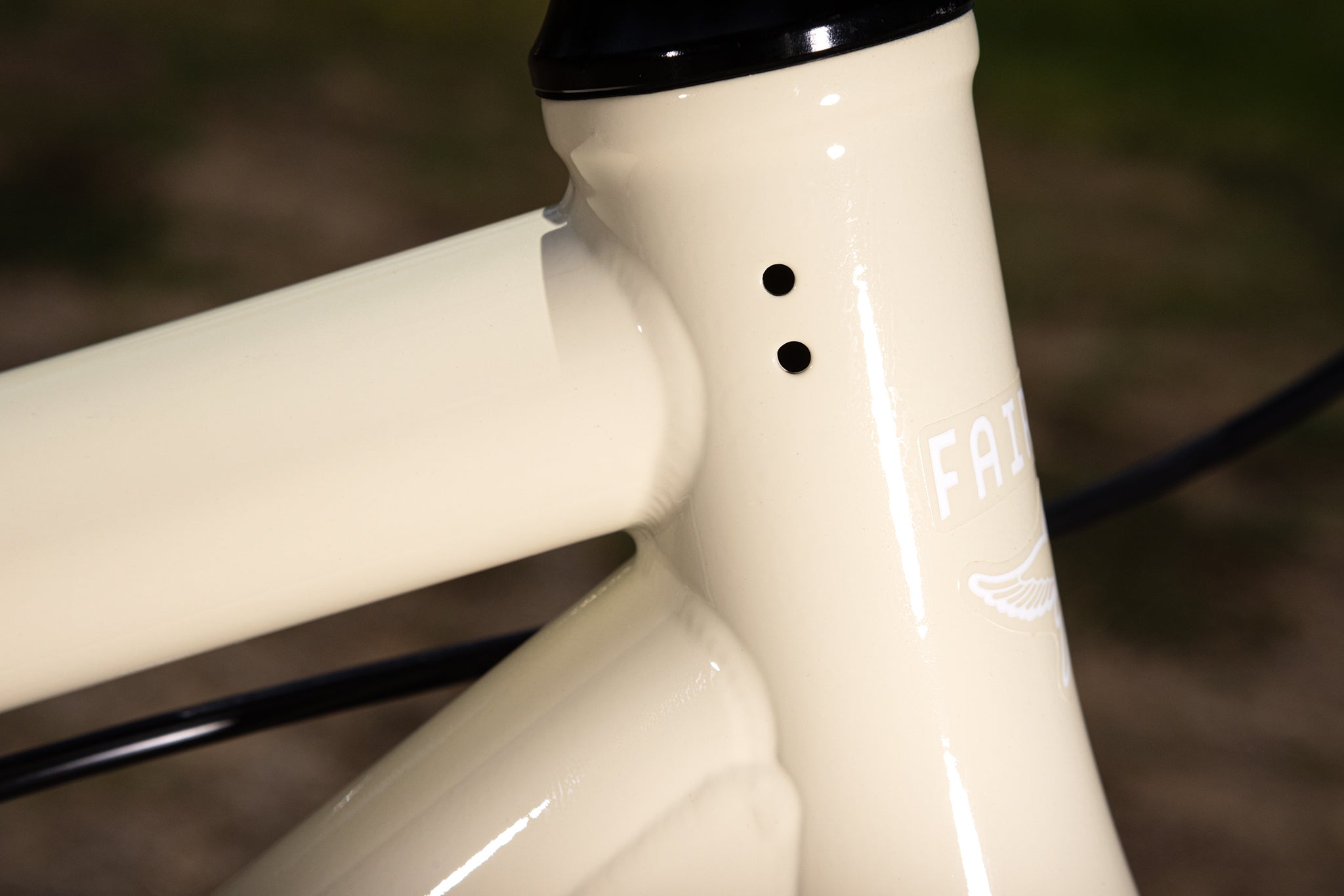

The Hareraiser is a 26” wheeled Dirt Jumper (DJ). It is made from trustworthy 100% 4130 chromoly. The frame’s lively feel comes from its ultra-short chainstays and our BMX know-how. You’ll also find integrated chain tensioners, BSA73mm threaded bottom bracket, and a tapered 1-1/8” to 1-1/2” headtube with removable Gyro tabs.

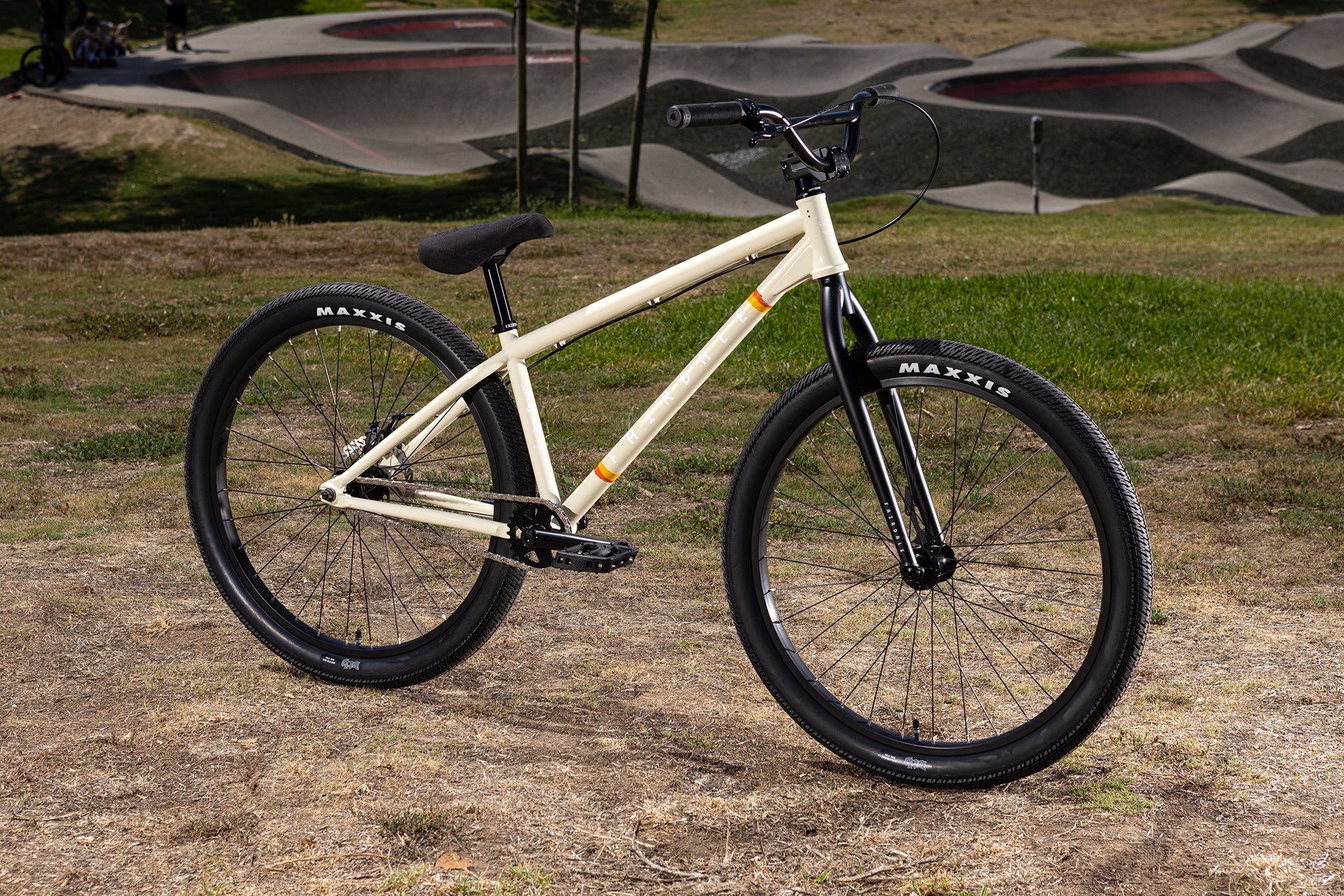

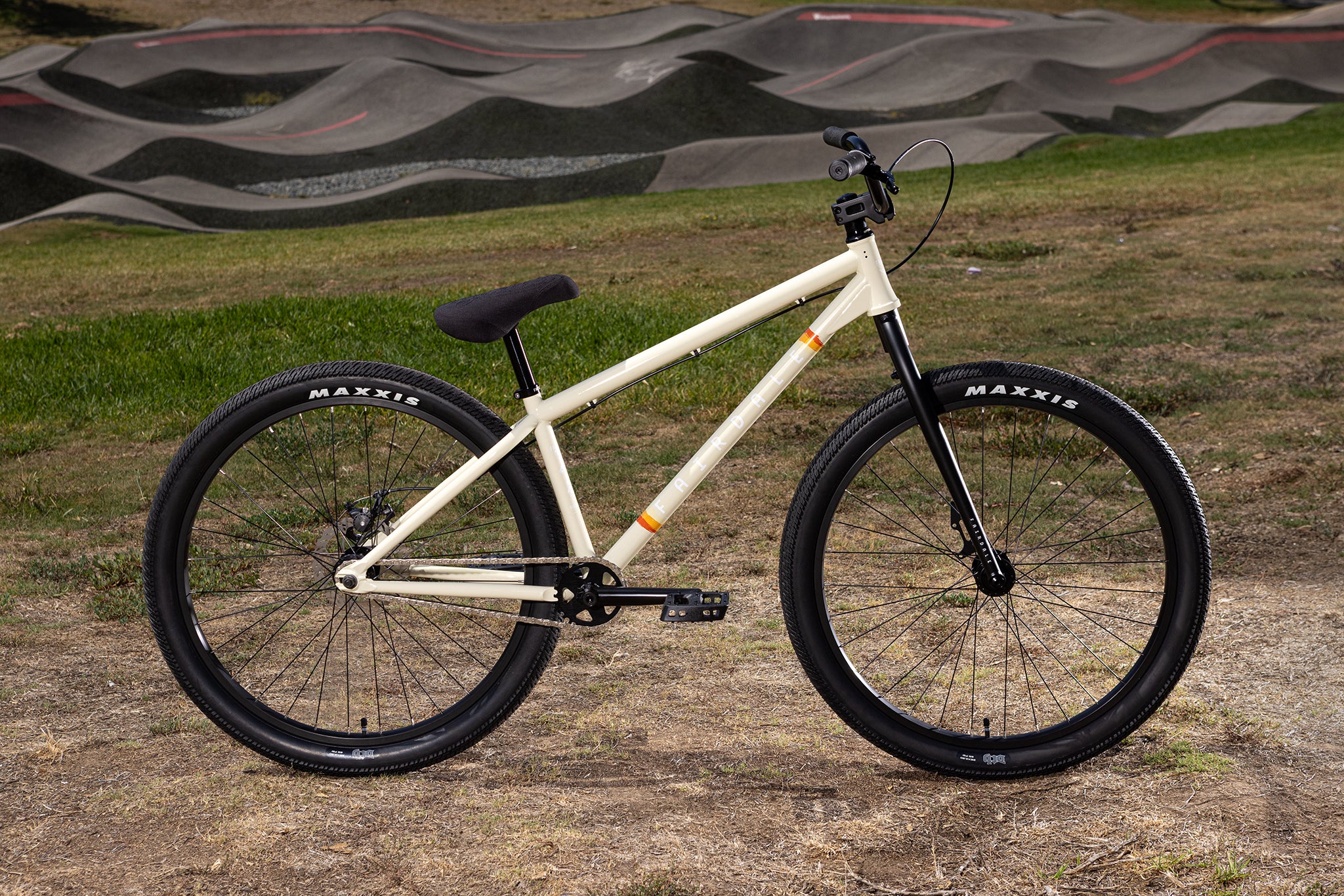

The complete Hareraiser features a 100% chromoly Hareraiser fork, Fairdale MX-4 bars, and a Sunday Freeze front load stem. This rigid fork can offer a more BMX feel in skateparks, or simply a lower-priced way to get started on a Hareraiser.
Sizing
Small/ Medium: 5' height and up
A shorter front end means the bike can spin quicker and maneuver faster. This can also feel more natural if coming straight from a BMX bike. Rider fit is very subjective, but we’d guess you would be over 5’ tall to ride this size
Medium/Large: 5'6" height and up
A longer front end means more stability, especially during high-speed dirt jumps. It can also feel more natural when stepping onto it directly from a much larger MTB trail/ enduro bike. Rider fit is very subjective, but we’d guess you would be over 5’6” to ride this size.
Sizing is approximate. Please consult with your local bike shop to assist with fit.
Specs
Frame: 100% 4130 chromoly DJ frame, 3/8" Dropout, Threaded 73mm BB, Disc Mount

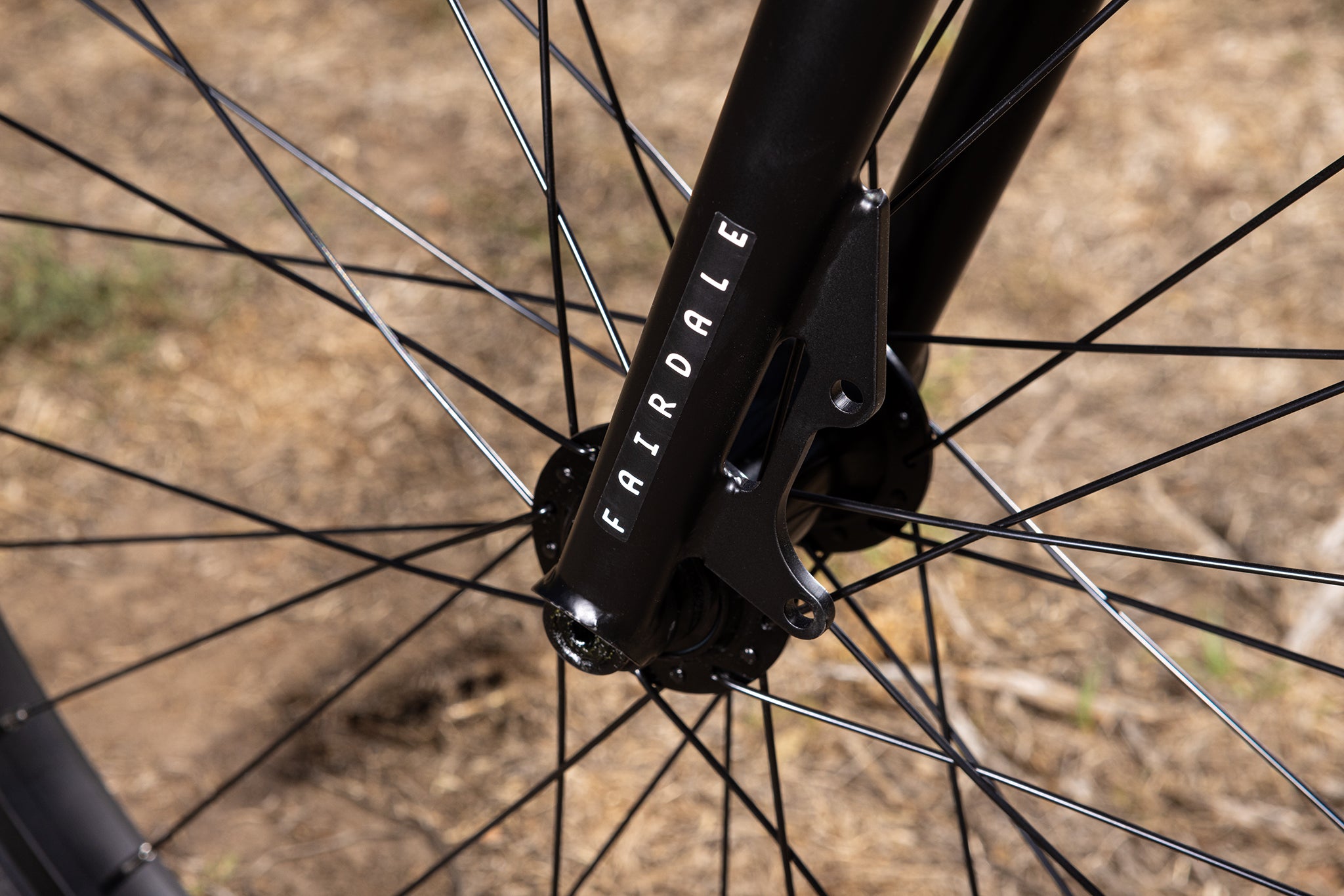

Fork: Fairdale Hareraiser Chromoly, 100mm spacing with 15mm thru axle

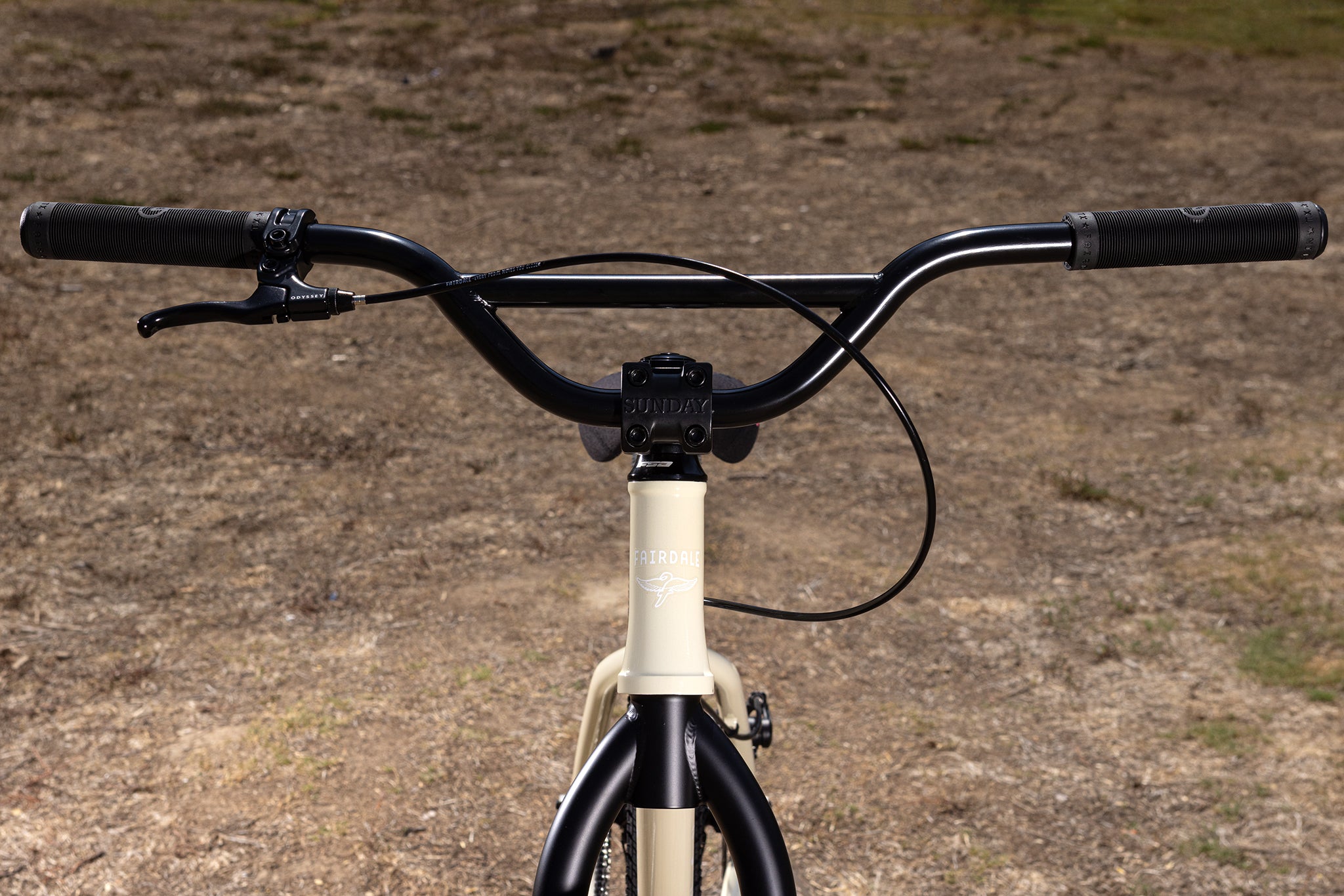

Handlebar: Fairdale MX-4
Stem: Sunday Freeze, 48mm Front Load
Headset: FSA Orbit Sealed

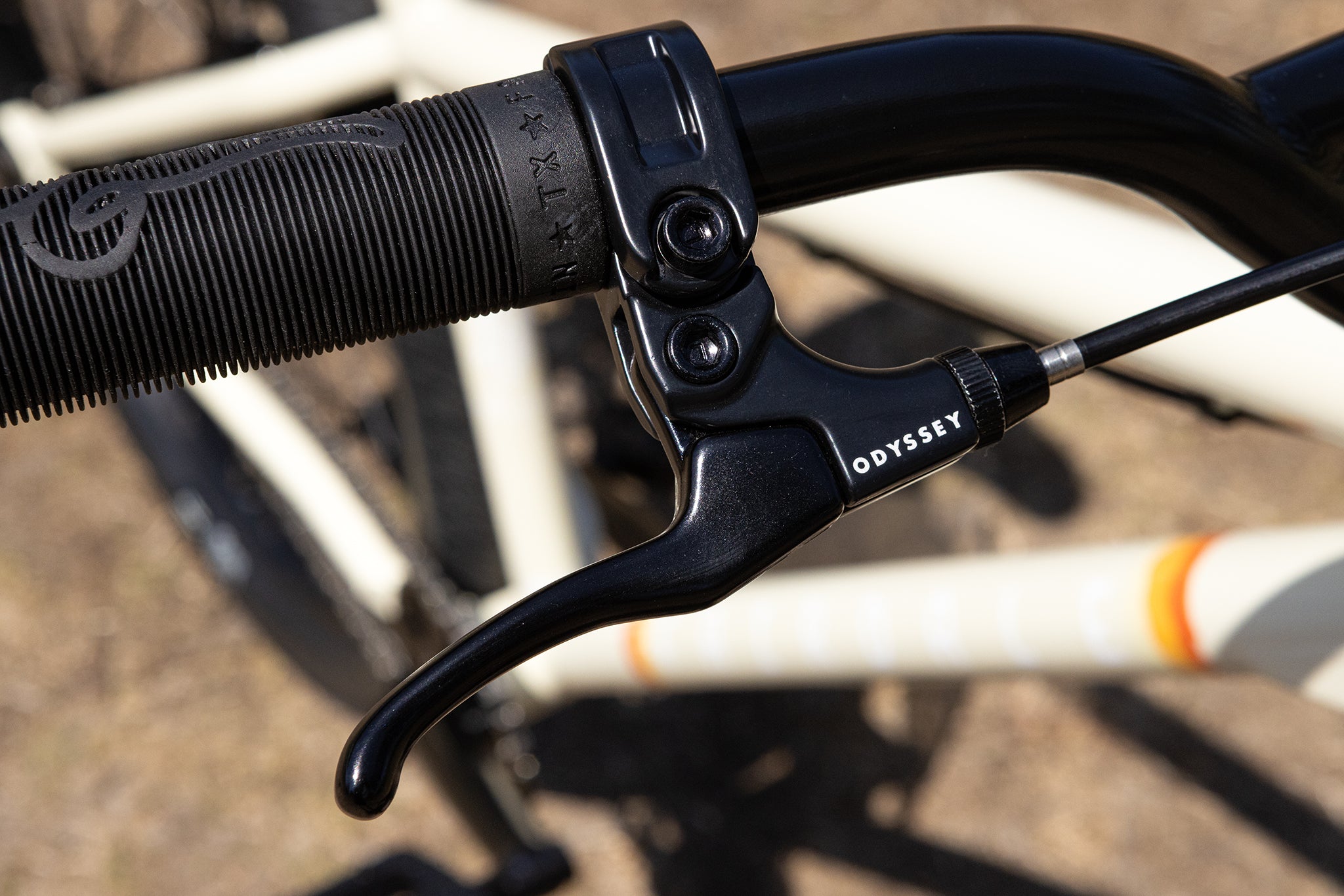

Brake Lever: Odyssey Monolever
Brakes: Mechanical Disc
Grips: Fairdale Swan

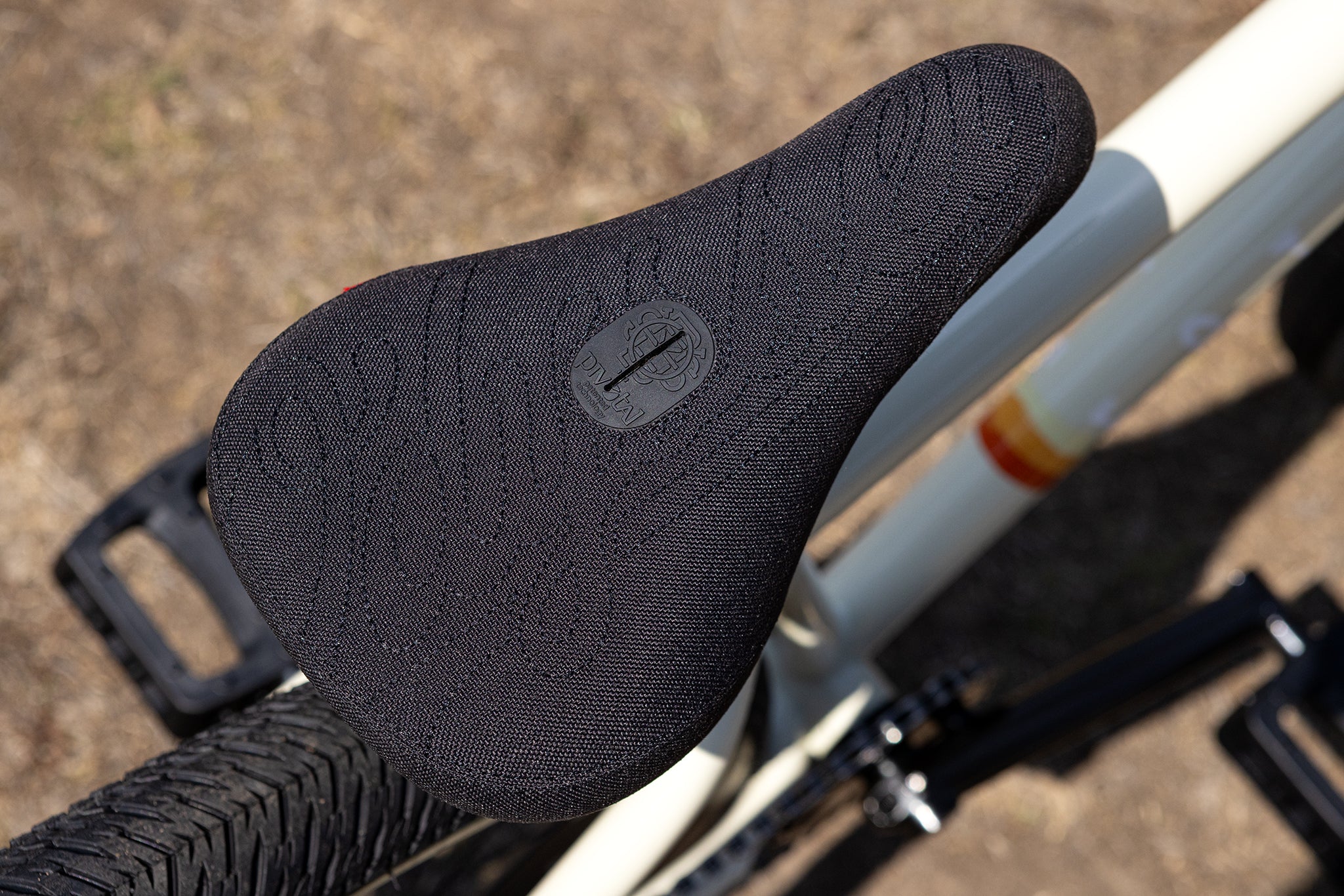

Saddle: Odyssey Big Stitch, Pivotal
Seat Post: Pivotal 27.2mm
Seat Clamp: Fairdale 30mm
Cranks: 19mm 8-Spline, 170mm

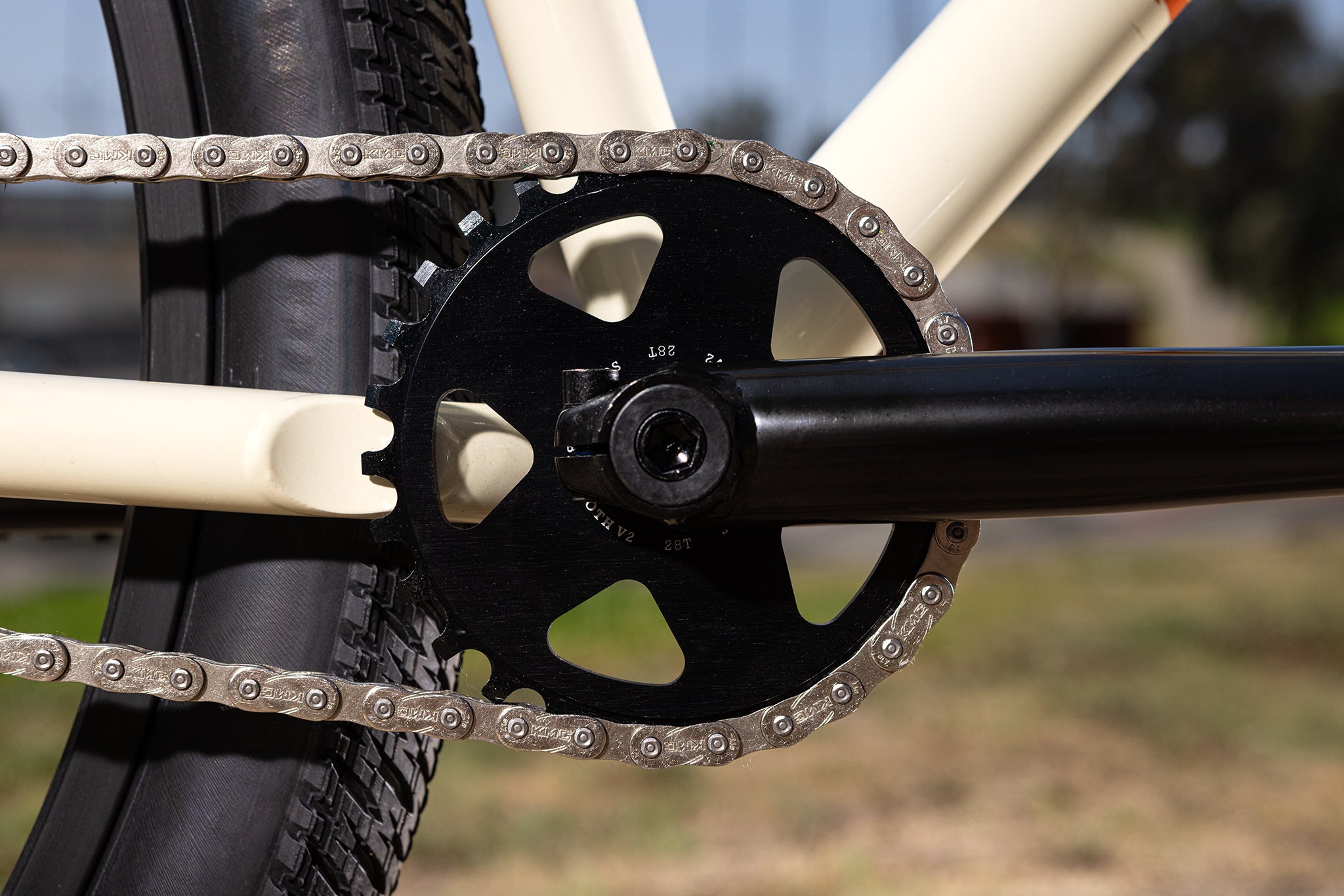

Chainwheel: 28T
BB Parts: Euro

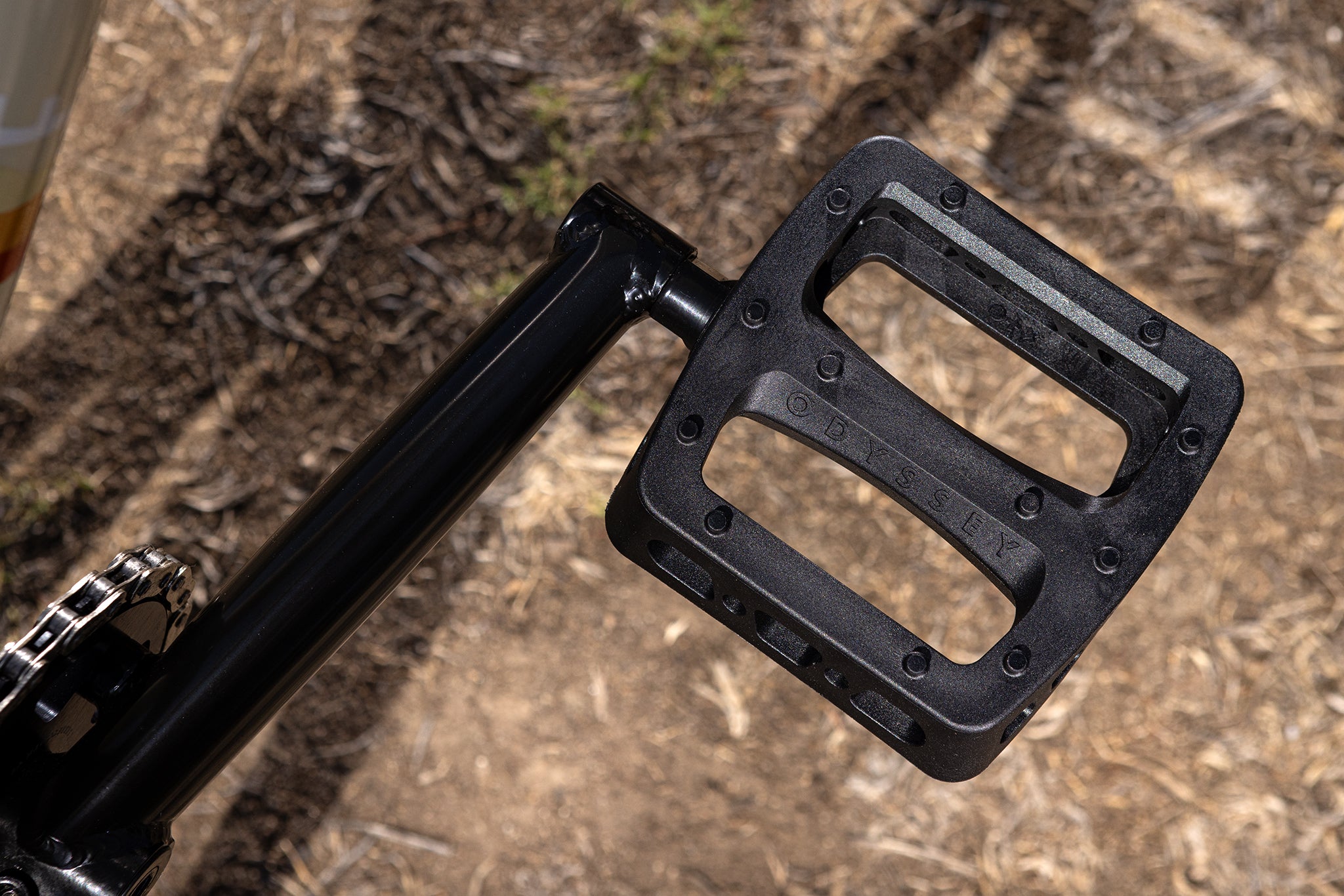

Pedals: Odyssey Twisted Pro PC
Rims: 26" 32H

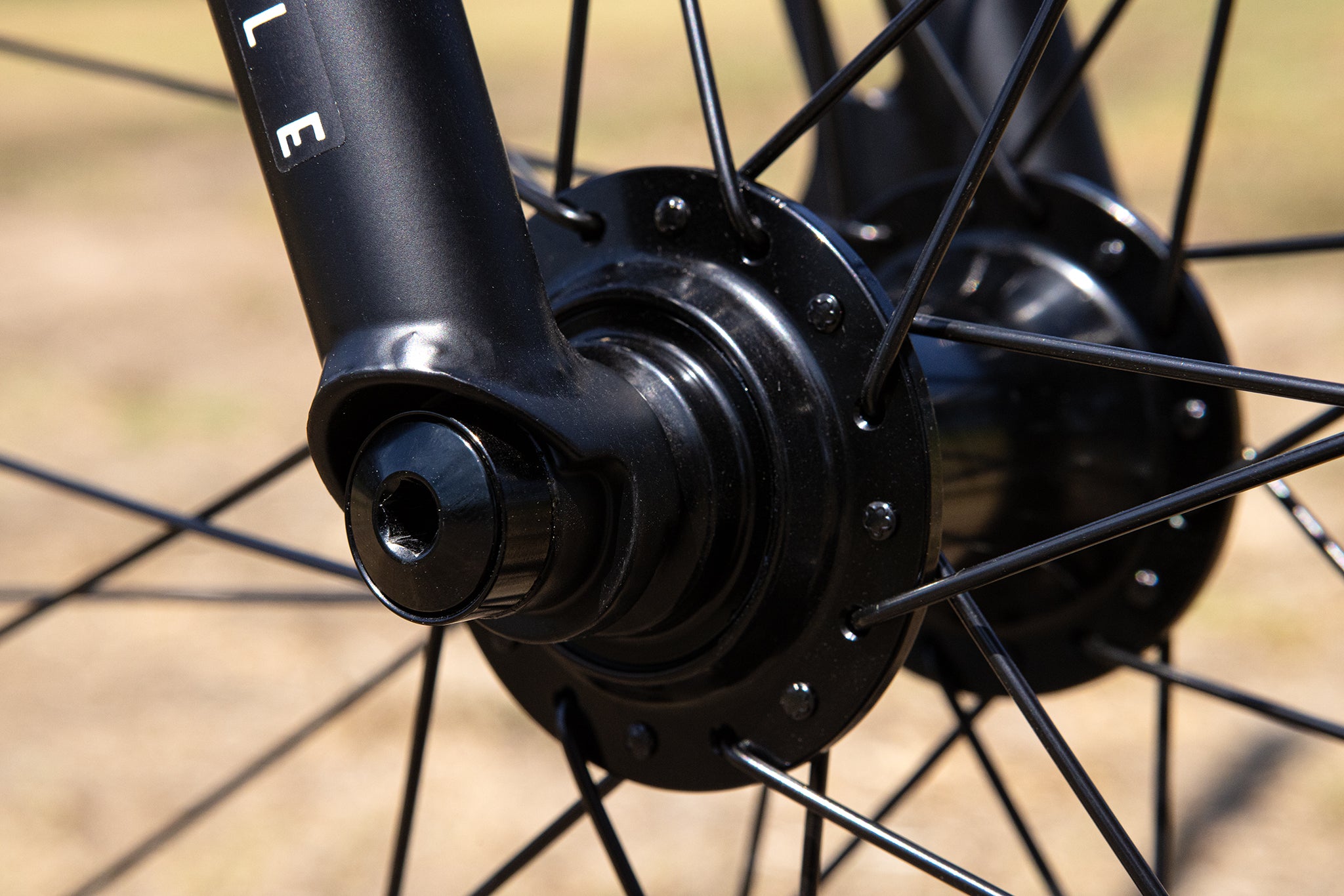

Front Hub: Sealed 15mm Thru Axle
Rear Hub: Sealed Cassette, 3/8" Axle, Disc

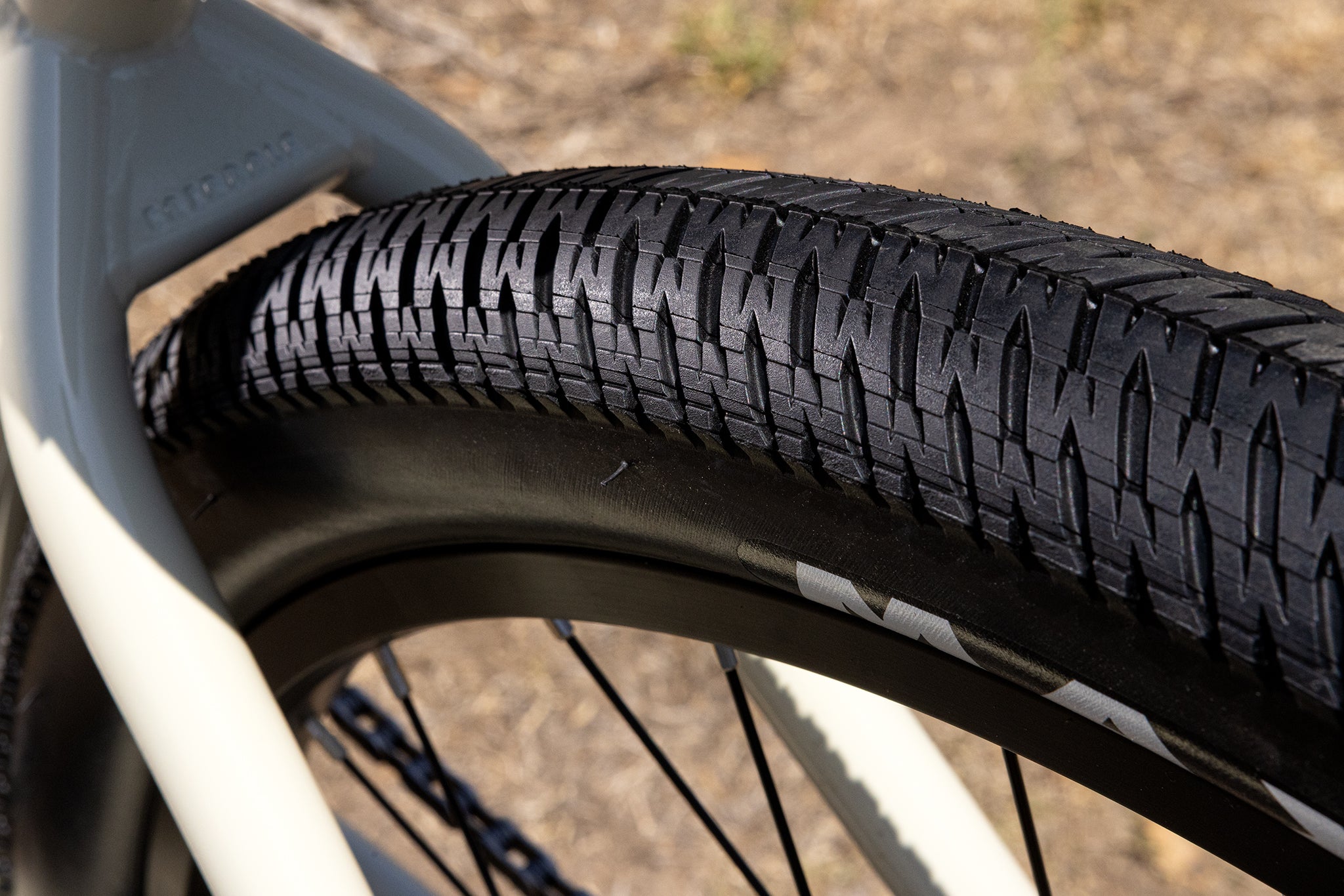

Tires: Maxxis DTH 2.3"
Chain: KMC Z1eHX
Driver: 12T
Geometry
| Build |
S/M Suspension | M/L Suspension |
S/M Rigid | M/L Rigid |
| Fork Travel | 100mm | 100mm | 100mm | N/A |
| Fork Axle to Crown | 482mm | 482mm | 455mm | 455mm |
| Fork Offset | 40mm | 40mm | 30mm | 30mm |
| Top Tube (Effective) | 600mm | 625mm | 600mm | 625mm |
| Seat Tube (BB Center to TT Center) |
340mm | 340mm | 340mm | 340mm |
| Seat Tube Angle | 72° | 72° | 73° | 73° |
| Head Tube Length | 120mm | 120mm | 120mm | 120mm |
| Head Tube Angle | 69.5° | 69.5° | 70.5° | 70.5° |
| Chain Stay Length | 379-389mm | 379-389mm | 379-389mm | 379-389mm |
| Standover | 690mm | 690mm | 681mm | 678mm |
| Stack | 570mm | 570mm | 562mm | 561mm |
| Reach | 415mm | 440mm | 427mm | 452mm |
| BB Drop | 20mm | 20mm | 28mm | 28mm |
| Rear Dropout Spacing | 10x135mm | 10x135mm | 10x135mm | 10x135mm |
| BB Type | 73mm threaded | 73mm threaded | 73mm threaded | 73mm threaded |
| Seat Post | 27.2mm | 27.2mm | 27.2mm | 27.2mm |
| Seat Clamp | 30mm | 30mm | 30mm | 30mm |
| Rear Tire Clearance | 2.3" | 2.3" | 2.3" | 2.3" |
| Wheel Size | 26" | 26" | 26" | 26" |
---
*Specs subject to change without notice.
