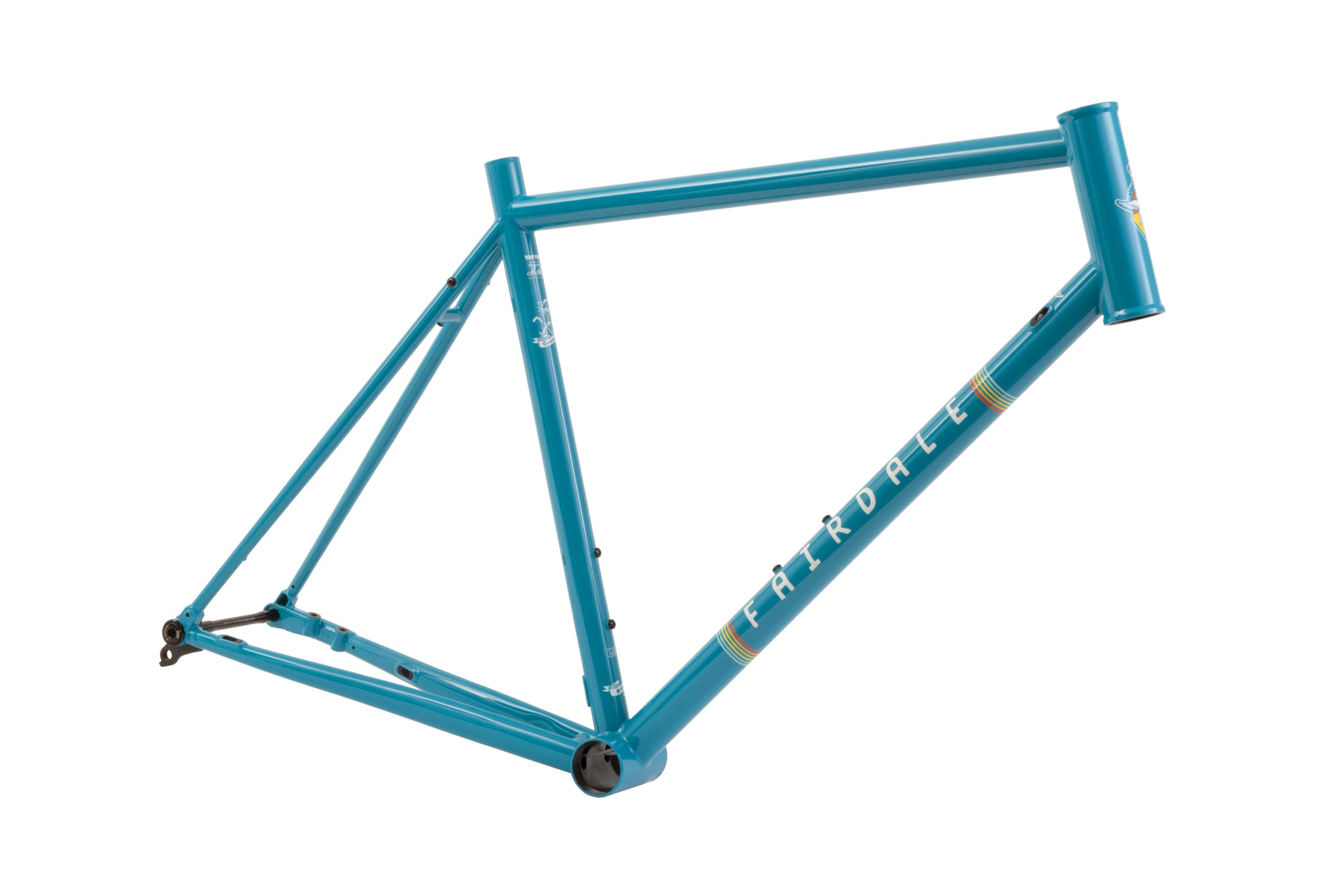

Fairdale Goodship FrameGloss Marine Blue
Our Goodship road bike frame is back.
We designed it to be a forward-looking, elegant, functional and adaptable frame that can be ridden daily with confidence – year after year. The Goodship embraces the exquisite ride and resilience of Reynolds 425 steel. You’ll enjoy proven modern appointments that make the Goodship practical and fast, without getting caught up in the fickle chase of the latest here-today-gone-tomorrow pro racing tech. After all, what really matters on a ride is the experience. The feel of the ride, the enjoyment of the ride, and durability to ride again tomorrow. The Goodship will give you the desire to push harder, find new roads, and importantly, it will inspire you to get out there again tomorrow.
Features
- Road focused geometry
- Reynolds 725 tubing throughout
- Clearance for 700x35 tires

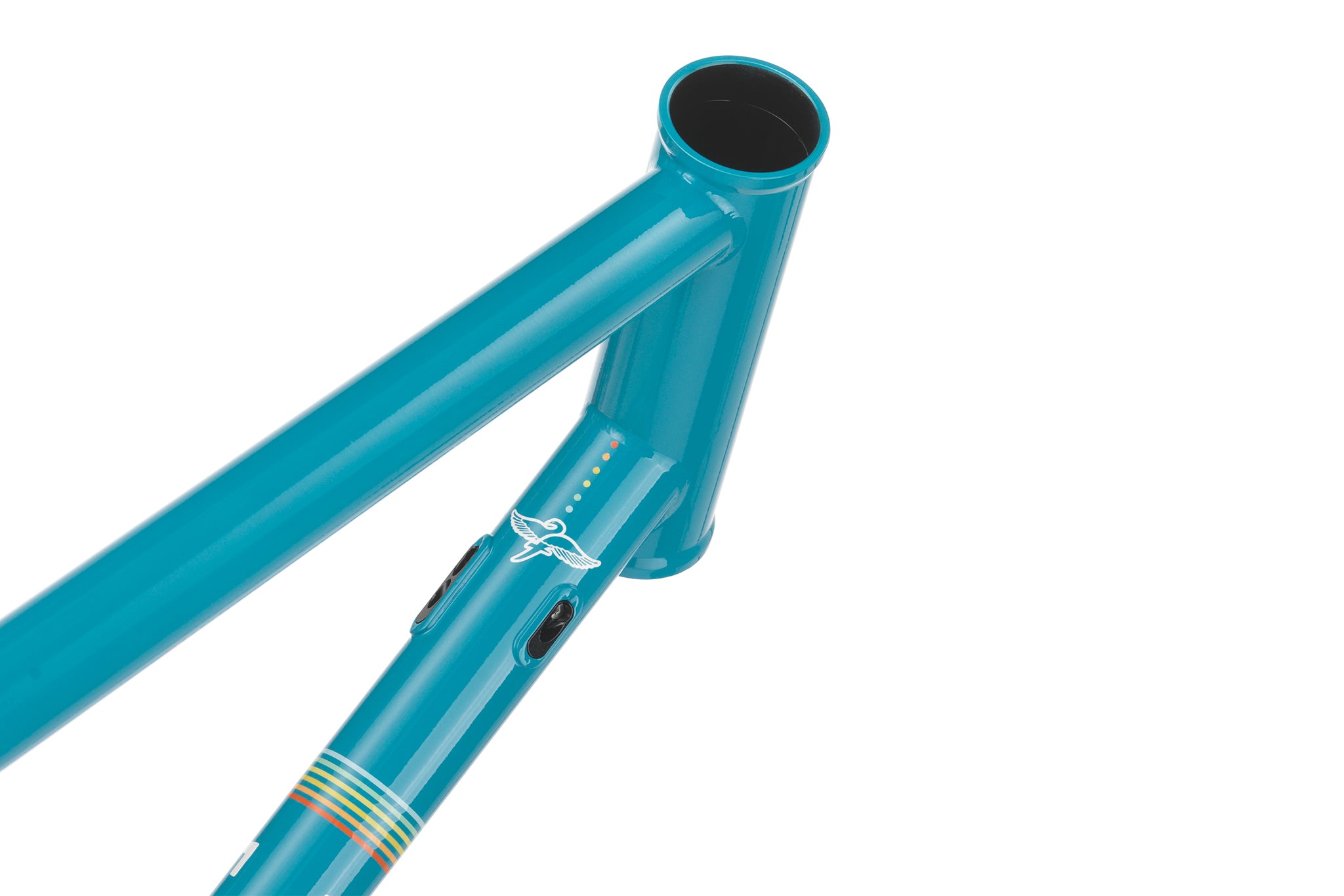

- Internal routing starting behind the head tube
- Compatible with electronic and mechanical groupsets
- Flat-mount disc

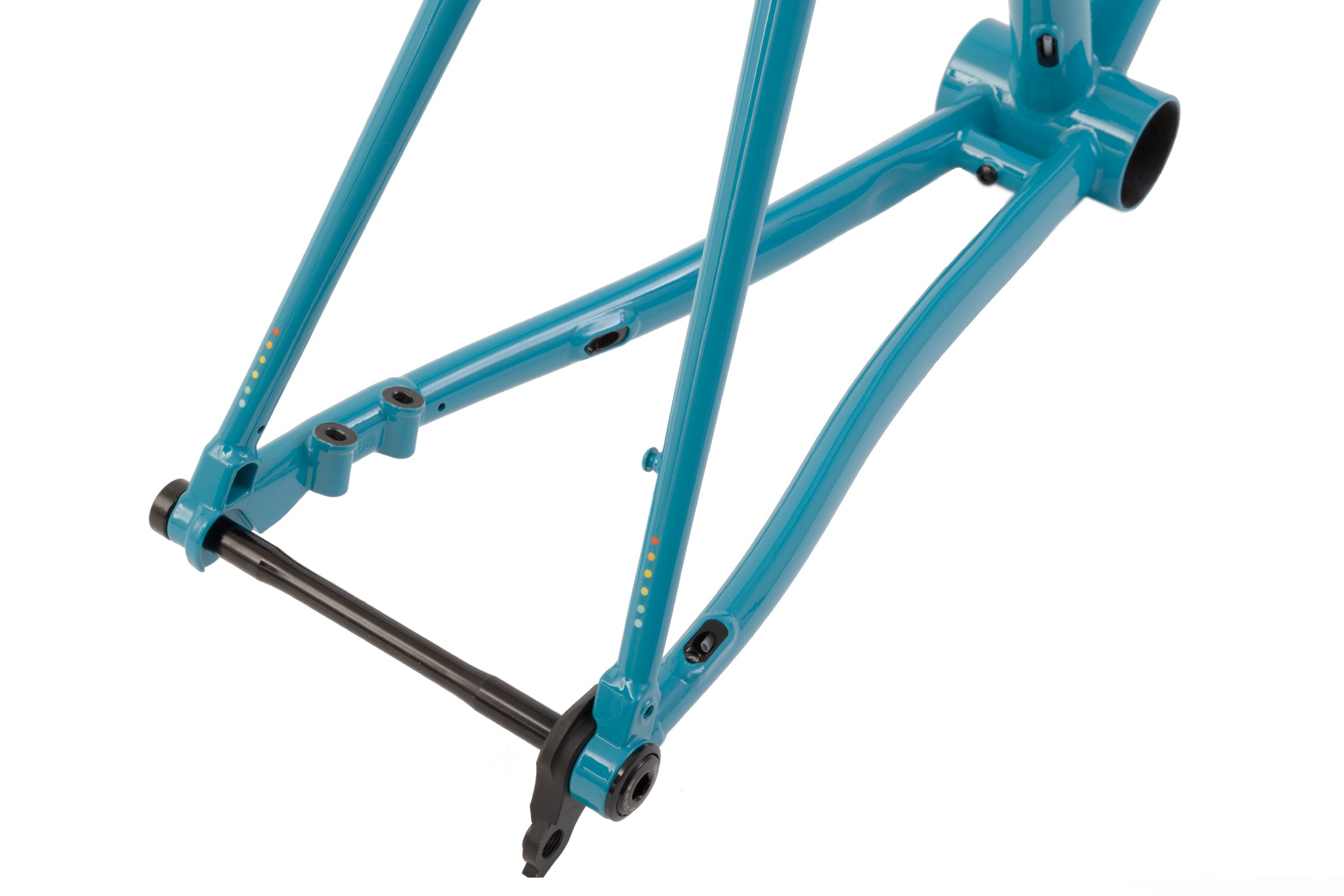

- UDH dropout

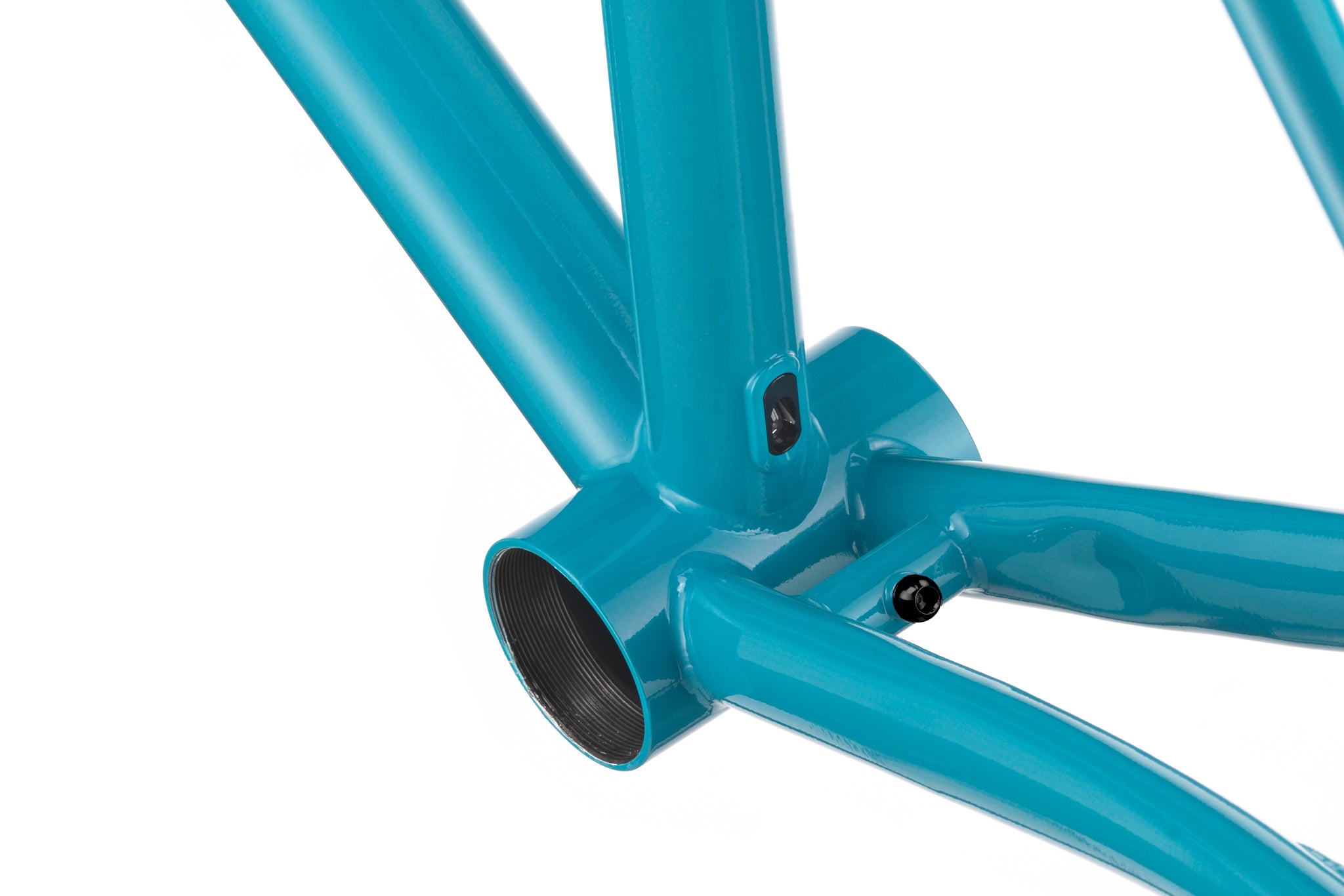

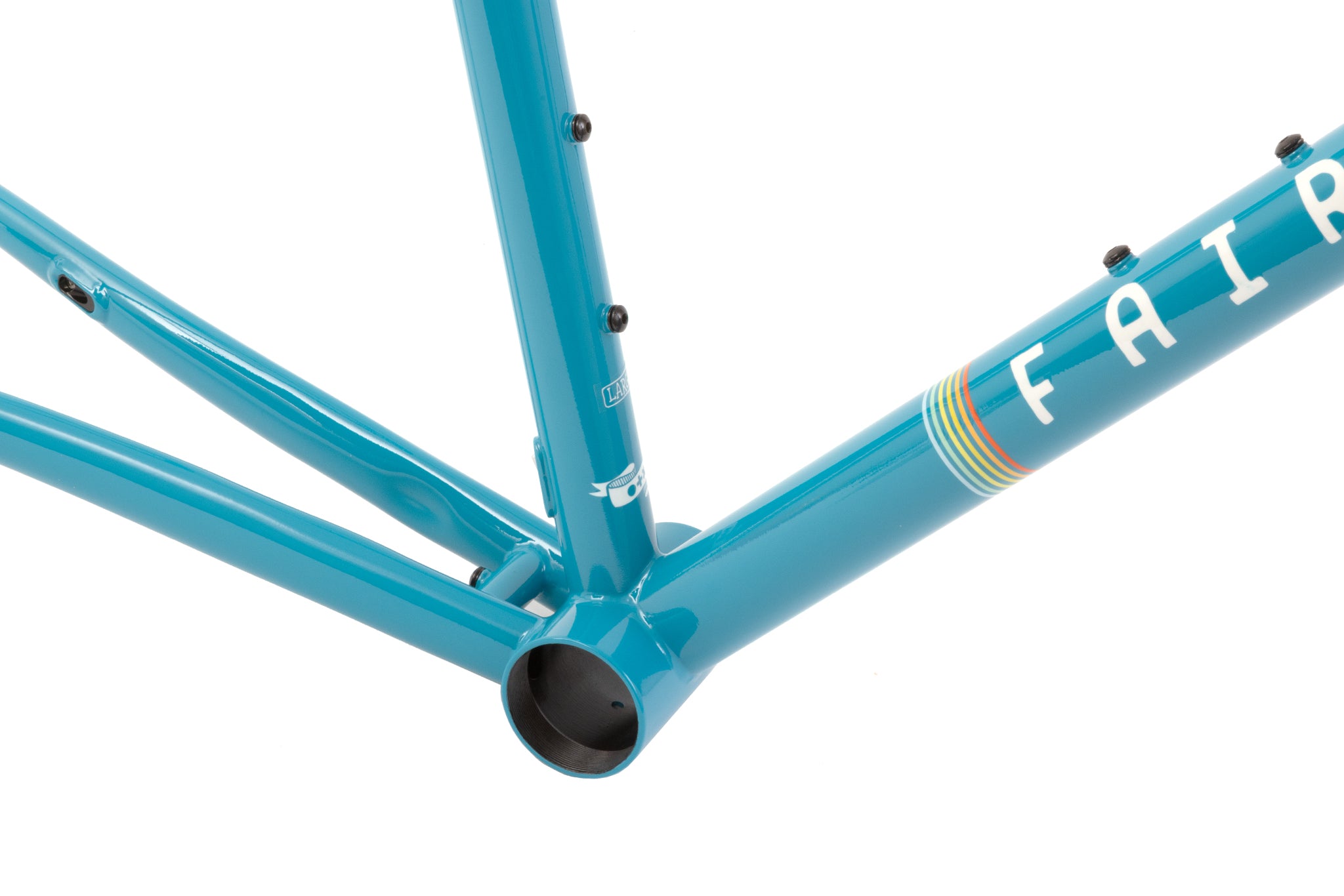

- T-47 bottom bracket
- ZS44│EC44 headset
- Rack and fender mounts
- Full ED coating
NOTE: The Goodship frame comes with: assorted port hole covers (for mechanical or wireless shifting), low-profile stainless bottle cage and rack bolts, low-profile stainless fender bolts, internal housing damper sleeves, 31.8mm clamp-on derailleur cable stop, Stick-On cable guides for Di2, and a M12x172x1.0T UDH axle.
Geometry
| Size | S | M | L | XL |
| Top Tube (Effective) |
513mm | 541mm | 558mm | 581cm |
| Top Tube (Actual) |
497mm | 523mm | 540mm | 562mm |
| Seat Tube (BB Center to TT Top) |
475mm | 510mm | 535mm | 560mm |
| Seat Tube (BB Center to TT Center) |
429mm | 464mm | 489mm | 514mm |
| Seat Tube Angle | 74° | 73.5° | 73.5° | 73.5° |
| Head Tube Length (With H/S Cup) |
138mm | 159mm | 185mm | 211mm |
| Head Tube Angle | 71° | 72.5° | 72.5° | 72.5° |
| Chain Stay Length | 420mm | 420mm | 420mm | 420mm |
| Wheelbase | 987mm | 996mm | 1014mm | 1037mm |
| Standover | 749mm | 778mm | 802mm | 811mm |
| Stack | 535mm | 560mm | 585mm | 610mm |
| Reach | 360mm | 375mm | 385mm | 400mm |
| Suggested Fork Length |
370mm | 370mm | 370mm | 370mm |
| Suggested Fork Offset |
50mm | 50mm | 50mm | 50mm |
| BB Drop | 70mm | 70mm | 70mm | 70mm |
| Dropout Spacing | 142mm | 142mm | 142mm | 142mm |
| Axle (172mm x 12mm x 1.0T) |
UDH | UDH | UDH | UDH |
| BB Type | T47 86.5mm |
T47 86.5mm |
T47 86.5mm |
T47 86.5mm |
| Seat Post | 27.2mm | 27.2mm | 27.2mm | 272.mm |
| Seat Clamp | 31.8mm | 31.8mm | 31.8mm | 31.8mm |
| Max Chainring Clearance | 2x (53/39T) | 2x (53/39T) | 2x (53/39T) | 2x (53/39T) |
| Approx. Max Tire Width 29"/700c | 700c x 35mm | 700c x 35mm | 700c x 35mm | 700c x 35mm |
| Wheel Size | 700c | 700c | 700c | 700c |
| Front Center Dim. (BB to Axle) |
577mm | 586mm | 604mm | 626mm |
